FORMED ZINC DETAILS
WITH INSULATION

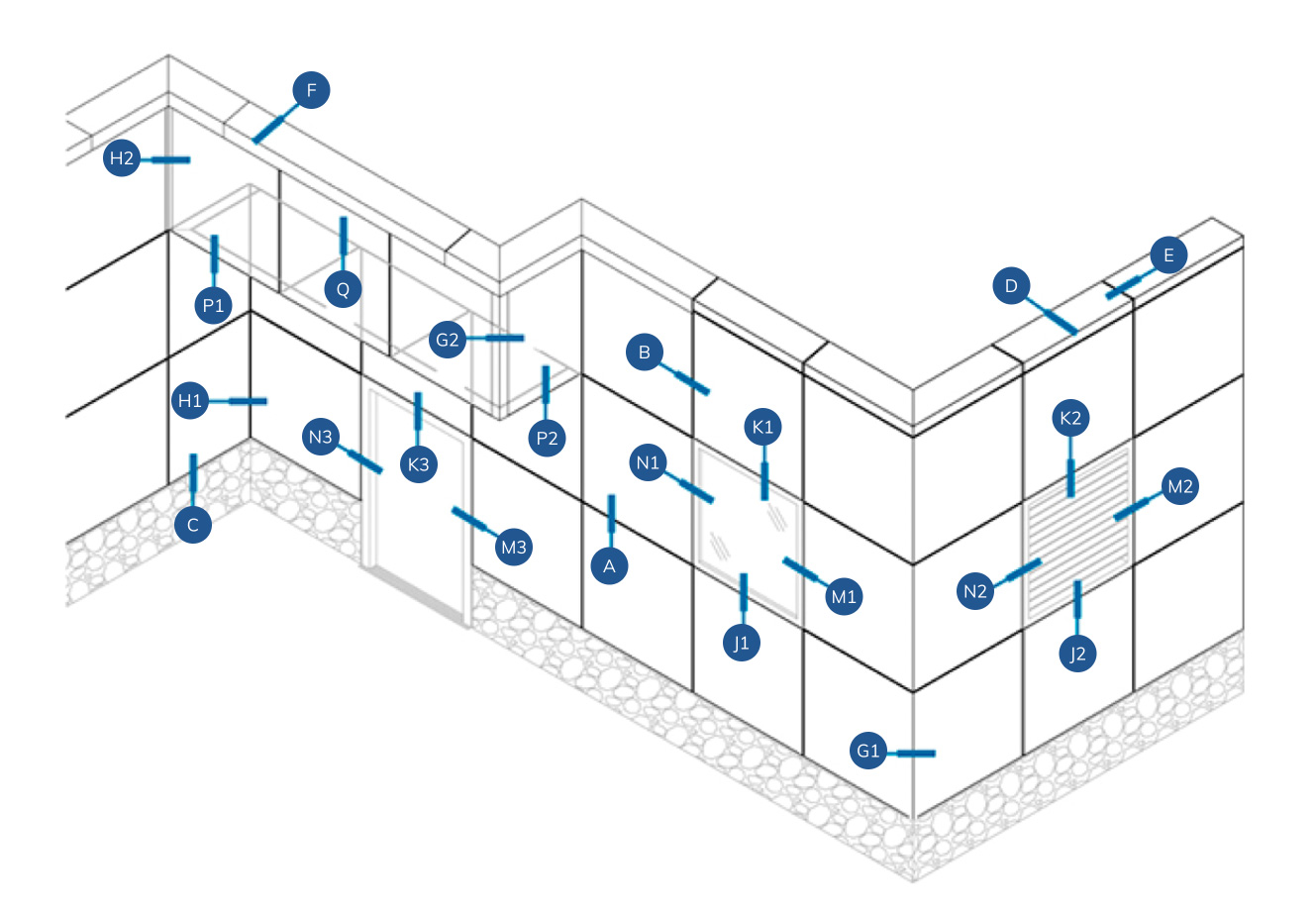

Click on the blue dots on the map to scroll down to the descriptions below to get a close up of each area shown on the map.
A - Section - Horizontal Joint
Horizontal joint at formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
B - Plan - Vertical Joint
Vertical joint at formed zinc panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
C - Section - Base Of Wall
Base of wall flashing at NorthClad ZNi System. Application for insulation exterior of the stud cavity (Exterior Insulation).
D - Section - Parapet Coping
Coping at NorthClad ZNi formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
E - Isometric - Parapet Coping Splice
Isometric detail showing coping splice at NorthClad ZNi standard coping. Application for insulation exterior of the stud cavity (Exterior Insulation).
F - Section - Formed Parapet Coping
Section at formed coping at NorthClad ZNi zinc panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
G1 - Plan - Outside Corner
Plan detail showing outside corner condition at NorthClad ZNi formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
G2 - Plan - Outside Corner With Trim
Plan detail showing outside corner condition with sheet metal trim at NorthClad ZNi formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
H1 - Plan - Inside Corner
Plan detail showing inside corner condition at NorthClad Zni panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
H2 - Plan - Inside Corner With Trim
Plan detail showing inside corner condition with sheet metal trim at NorthClad ZNi. Application for insulation exterior of the stud cavity (Exterior Insulation).
J1 - Section - Window Sill
Section showing window sill condition at NorthClad ZNi panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
J2 - Section - Louver Sill
Section showing louver sill condition at NorthClad ZNi panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
K1 - Section - Window Head
Section detail showing window head condition at NorthClad ZNi panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
K2 - Section - Louver Head
Section detail showing louver head condition at NorthClad ZNi panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
K3 - Section - Door Head
Section showing door head condition at NorthClad ZNi zinc panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
M1 - Plan - Window At Right Jamb
Plan detail showing right window jamb at NorthClad ZNi zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
M2 - Plan - Louver At Right Jamb
Plan detail showing right louver jamb condition at NorthClad ZNi formed zinc panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
M3 - Plan - Door At Right Jamb
Plan detail showing right door jamb condition at NorthClad ZNi formed zinc panel. Application for insulation exterior of the stud cavity (Exterior Insulation).
N1 - Plan - Window At Left Jamb
Plan detail showing left window jamb at NorthClad ZNi formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
N2 - Plan - Louver At Left Jamb
Plan detail showing left louver jamb at NorthClad ZNi panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
N3 - Plan - Door At Left Jamb
Plan detail showing left door jamb at NorthClad ZNi panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
P1 - Section - Fascia To Soffit
Section detail showing fascia to soffit condition at NorthClad ZNi zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
P2 - Section - Fascia To Soffit
Section detail showing fascia to soffit at NorthClad ZNi formed zinc panels. Application for insulation exterior of the stud cavity (Exterior Insulation).
Q - Section - Soffit At Top Of Wall
Section showing wall to soffit condition at NorthClad ZNi panel system. Application for insulation exterior of the stud cavity (Exterior Insulation).
